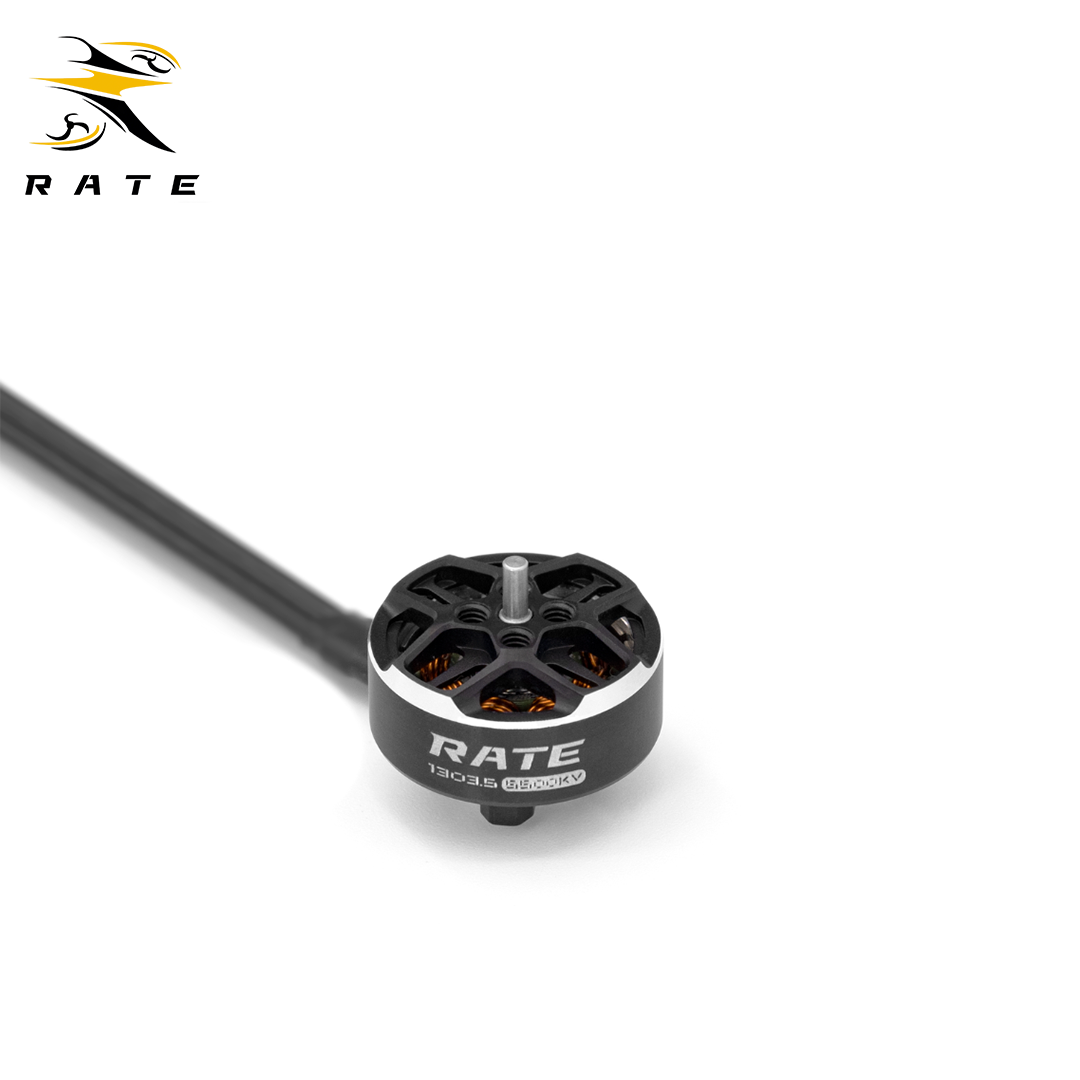

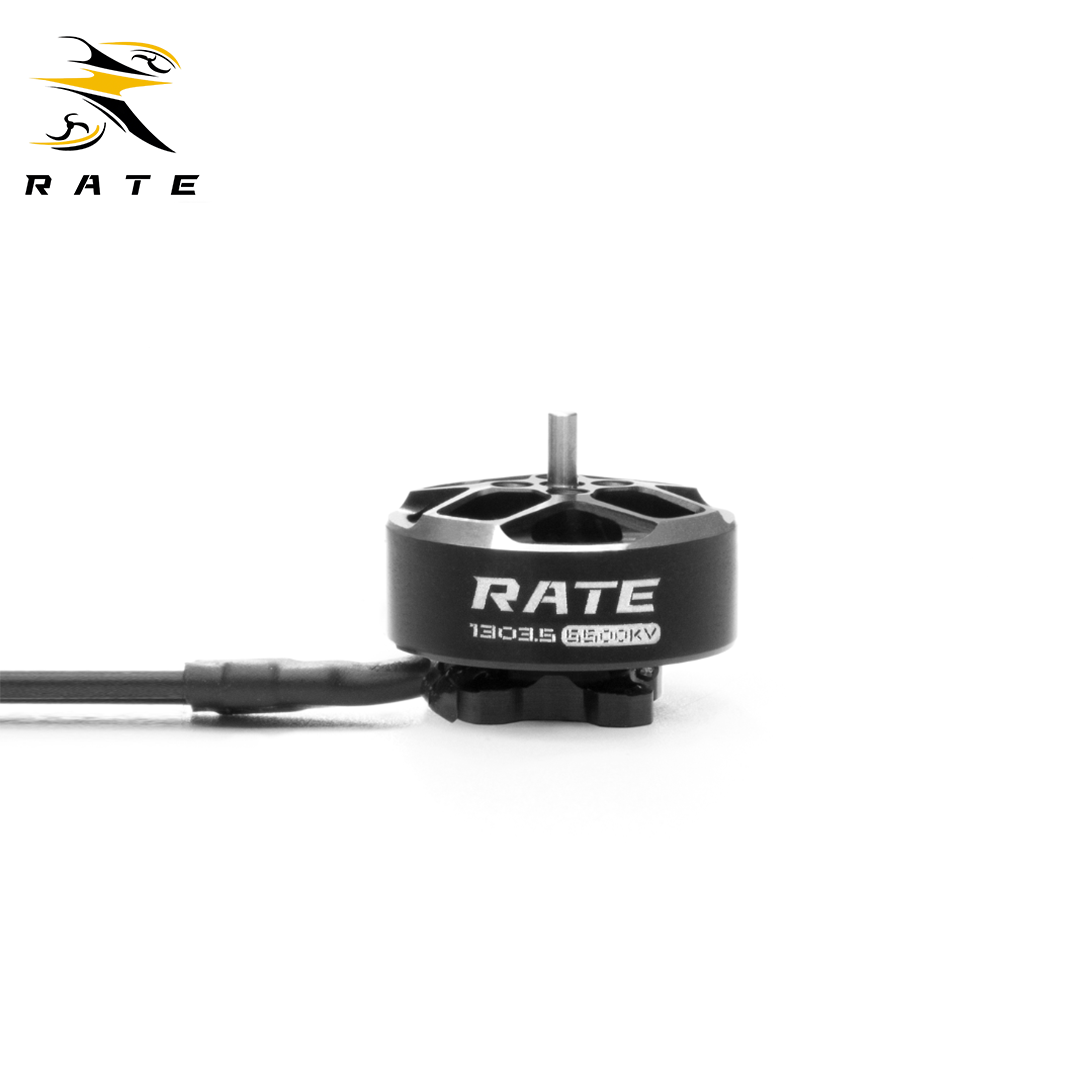

RATEFPV 1303.5 5500kv Brushless Motor For 2-2.5 Inch FPV Drone

Specification

KV: 5500KV

Max Power: 169.57W(5500KV/D51-5)

Max Current: 10.60A(5500KV/D51-5)

Slot pole： 9n/12p

Winding: Single-strand Winding

Adopt Prop: 2-4 Inch(Φ fixed mounting holes)

Dimensions: Φ17.5mm x 11.19mm

Output Shaft Diameter： ø1.5mm

Output Shaft Length： 3.8mm

Mounting hole： 9*9mm

Input Voltage: 7.2v-17.4v

FPV Drone Recommended Voltage: 10.8v-17.4v(3-4S Lipo/Hv)

Lead Wires：100mm/24AWG

ESC: ＞ 15A

Weight: 7.58g( include the wire)
