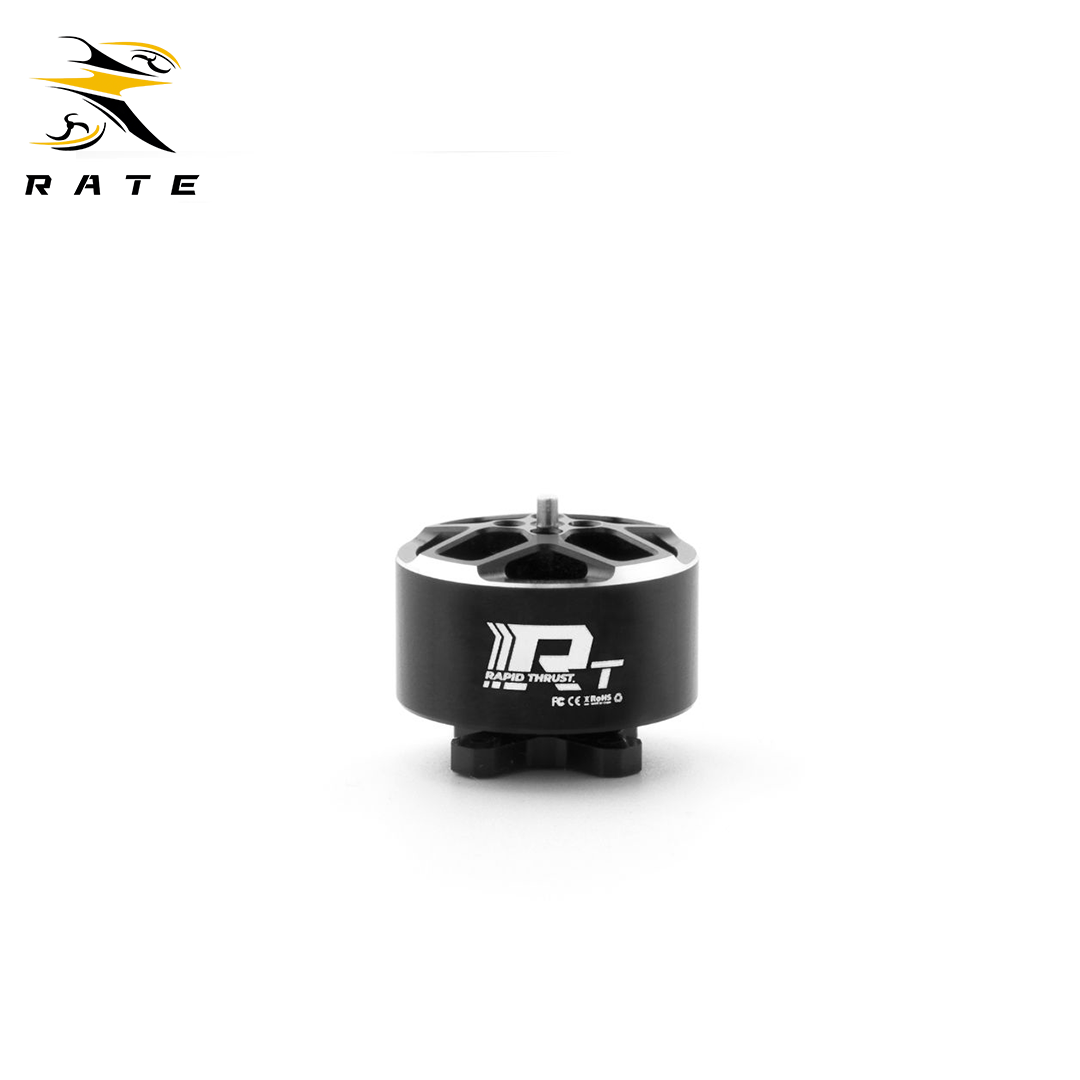

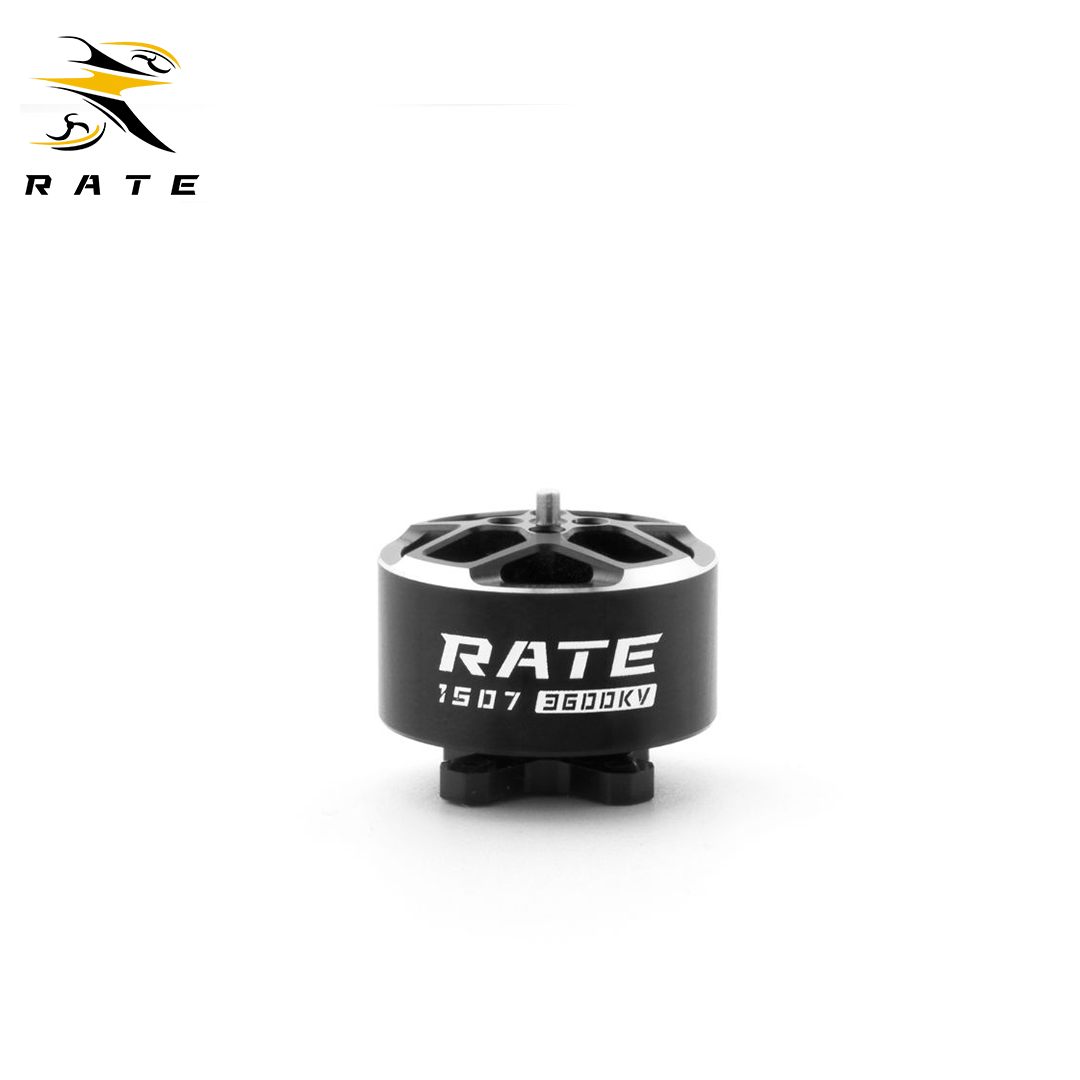

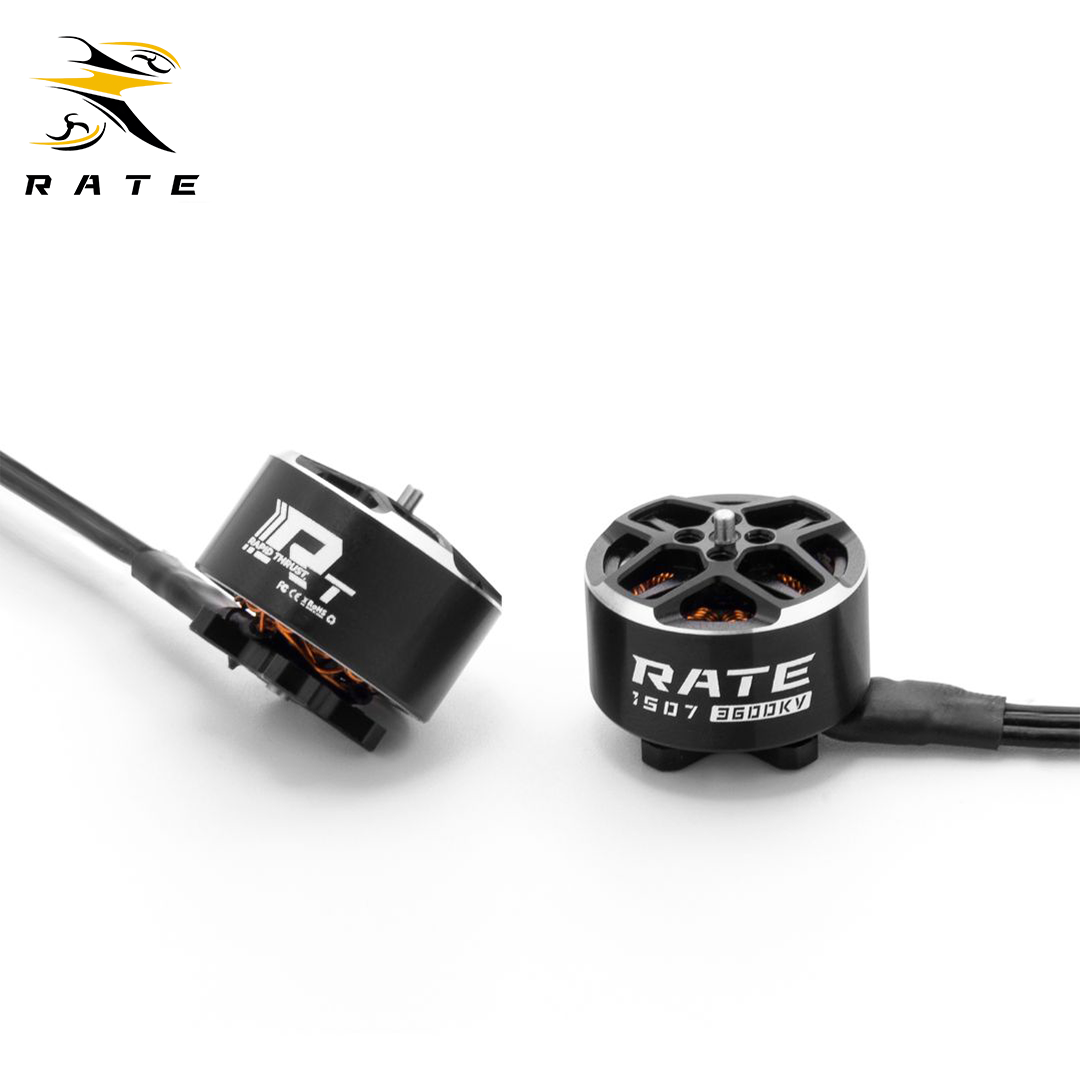

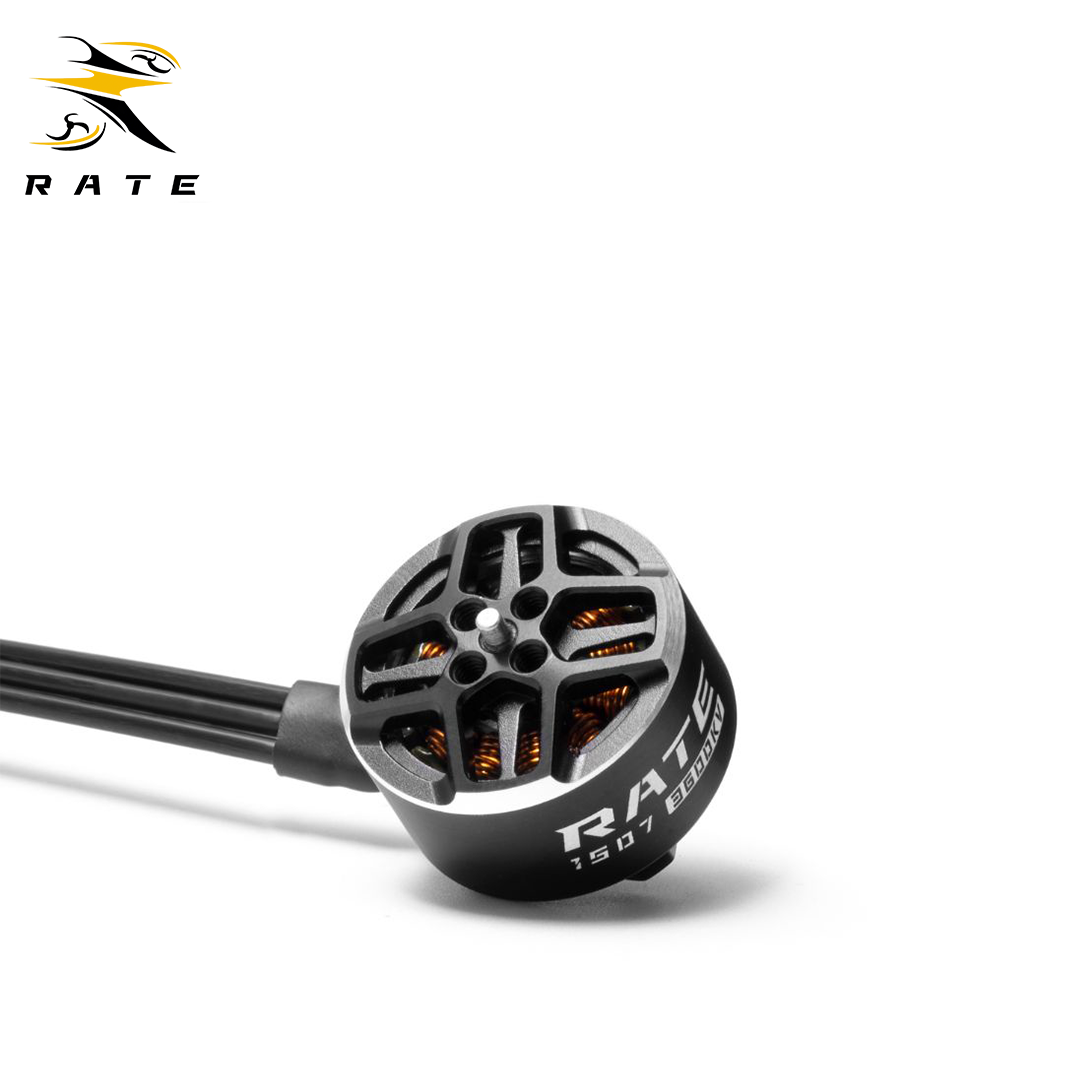

RATEFPV RATE 1507 3600KV Brushless Motor

Engineered for 2.5–4 inch cinewhoops and freestyle builds, this 4S-optimized motor strikes the perfect balance between snappy power and silky-smooth control. The 3600KV rating delivers ideal RPM for small-prop agility, while precision engineering ensures linear throttle response—equally at home in aggressive freestyle maneuvers and steady cinematic filming. Lightweight, durable, and perfectly tuned for micro to mid-size drones, it’s the go-to powerplant for pilots who demand versatility without compromise.

Features

⚡ 3600KV 4S Optimized Power

Perfectly matched to 4S batteries for crisp, responsive power on 2.5–4 inch rigs; ideal RPM range for snappy freestyle and stable filming.

🎯 Silky Smooth Throttle Linearit

Precision-wound stator and balanced rotor deliver buttery-smooth power delivery—zero cogging, perfect for slow cinematic pans and tight freestyle tricks.

🛡️ Durable & Impact-Resistant

Heavy-duty shaft and reinforced bell construction withstands crashes, turtle mode, and frequent hard flights.

🪶 Lightweight Compact Design

Mini 1507 size keeps overall build weight low for better agility, longer flight times, and clean micro-drone builds.

🎬 Dual-Purpose for Freestyle & Filming

Responsive enough for hard freestyle, calm and stable enough for smooth aerial cinematography—true all-around performance.

🔩 Wide Micro-Drone Compatibility

Perfect fit for 2.5–4 inch frames, cinewhoops, toothpicks, and small freestyle quadcopters.

Specification

KV value: 3600 KV
Maximum Power: 169.57 W (3600 KV/D51-5)
Maximum Current: 10.60 A (3600 KV/D51-5)
Winding Mode: 12n/14p
Wiring Method: Single-strand winding
Compatible Propeller: 2-4 inches (Φ5 fixed hole propeller)
Motor Dimensions: Φ20.3 mm x 18.1 mm
Shaft Diameter: Φ1.50 mm
Shaft Length: 2 mm
Motor Mount Hole Spacing: 12×12 mm
Input Voltage: 7.2 V-17.4 V
Quadcopter / FPV Drone Recommended Voltage: 10.8 V-17.4 V (3-4S LiPo Hv)
Lead Length: 100mm/24 AWG
Compatible ESC: 15A and above
Mounting Screws: M2×5 (5 */1-2 mm mounting plate), M2×6 (5 *2.5-3.5 mm mounting plate), M2×7 (3 *mounting plate)
Weight: 16g (with 100mm wire)
